Electric Mini Truck(under development)

Reasons: Since we start the business of "Electric Surrey Bike", A lot of
potential clients called us and asked about "Electric Trucks",
The main reasons are:
1. Short distance cargo carry.
2. Dislike the smell of gasoline.
3. Normal truck is too big and too expensive.
4. Particular space, unable to use fuel equipment.. and so on.
We evaulate the situation, discovered that there is must be a requirement
for specific people about electric mini truck.
Every time when we think about that the fuel cost is very less, and
the maintenance is almost nothing, it is worth for developing this item.

After discussion, we make a brief as follow:
1.If the cargo is usually less than 200 kgs, utilize 24Volt control system.
2.If the cargo is more than 400 kgs, utilize 48Volt control system.
3.If the cargo is between 200 kgs to 400 kgs, let customers
  make the choice for 24V or 48V.
4.Difference for 24V and 48V: 48V is more powerful and consume more energy.
5.Consume more energy means that when using the same capacity battery,
  usage time become less.
6.Truck load bucket (cargo bed), Two sizes, they are:
   90*120 cm (medium) and
  120*150 cm (large).
7.The capacity for LiFePO4 battery pack: 24V60AH or 48V60AH.
8.The 24V60AH battery set is good for working 6 hours.
9. Fixed speeds at 12 km/hour or 15 km/hour or 18km/hour.
10.Tailer made service for load bucket (cargo bed) and battery set.
11.No worry about replacing tires when Solid tires are utilized.

Sample development:(Actual data on 2018/10/26)
We are developing prototype sample for electric mini truck,
the speed data is as follow:
1.(Drive) forward 18 km/hour.
2.(Drive) reverse 8 km/hour.
3.(First gear) forward 9 km/hour.
4.(First gear) reverse 3 km/hour.


Electric Mini Truck is now developing, photos:

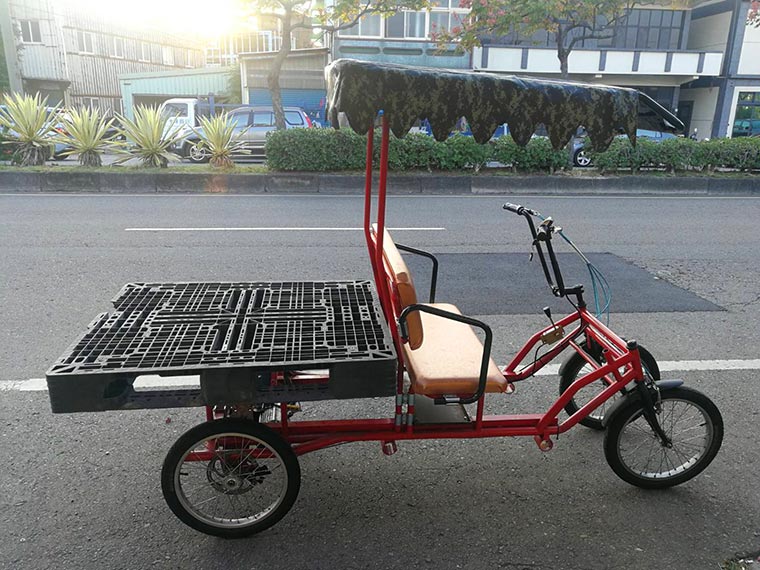

Electric Mini Truck-Concept Car

Concept Car: Four person Surrey quadricycle(ETC-400), take out back seats, put a pallet, add first gear (for climbing slope), prototype.
(date 2018 Oct.05)

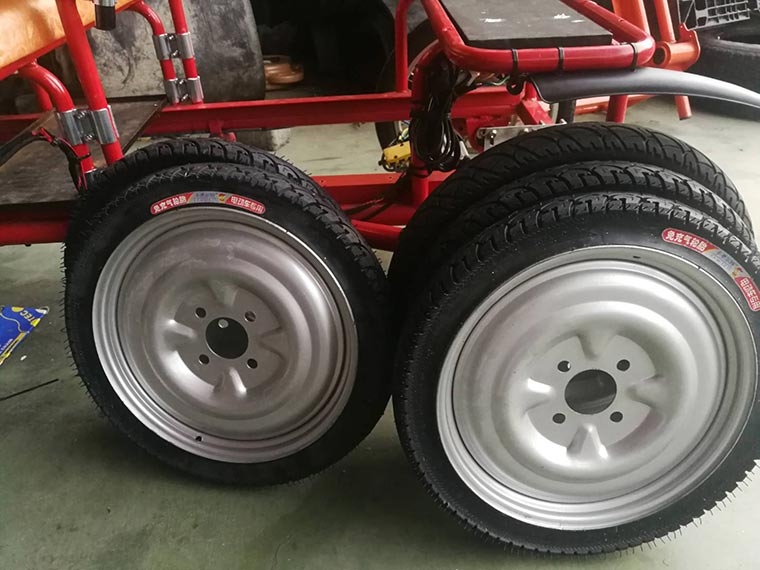

Electric Mini Truck-Solid tires(China tire)

It is really difficult to find - Solid tires(no gas-filled), each solid tire can support 300kgs.(Date: 2018 Oct.08)

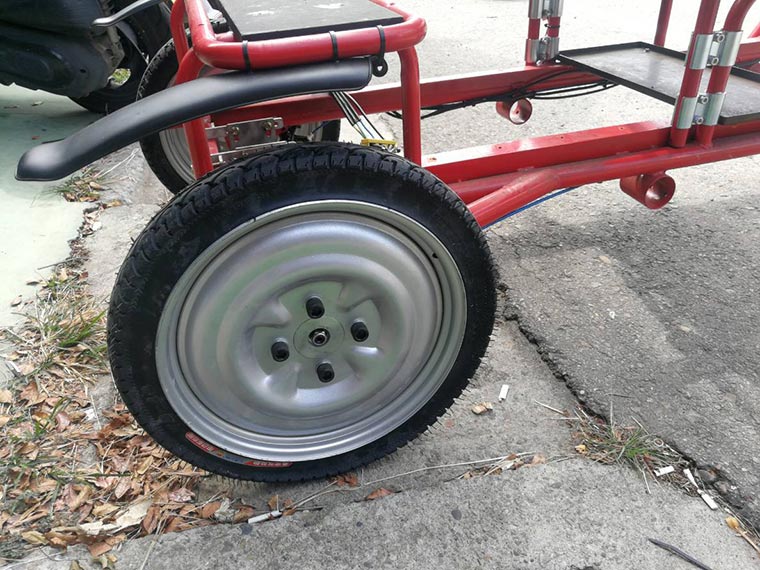

Electric mini truck- add solid tire for rear wheels

Electric mini truck- add solid tire for rear wheels.(Date:2018 Oct.16)

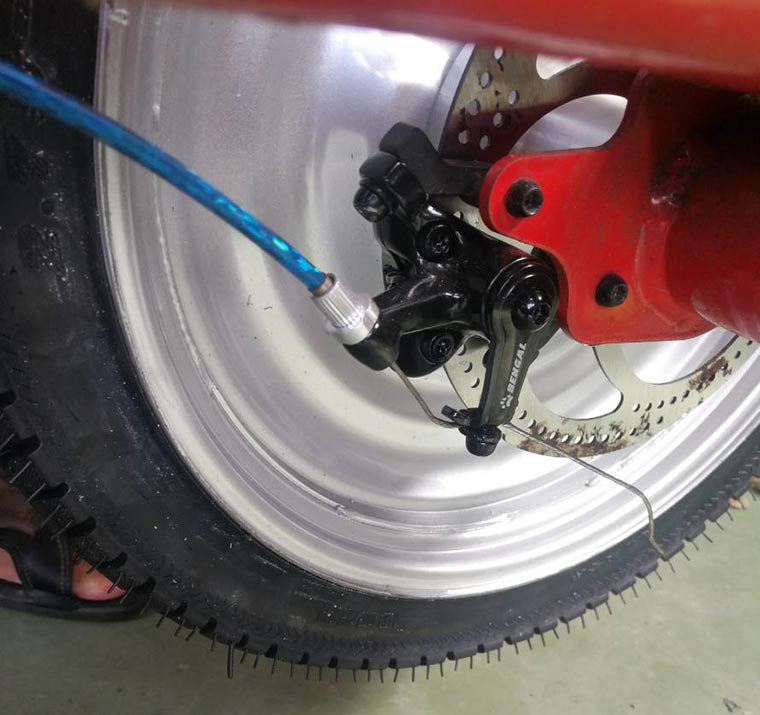

Electric mini truck - Disk brake for rear wheel

Electric mini truck - Disk brake for rear wheel。(Date:2018 Oct.16)

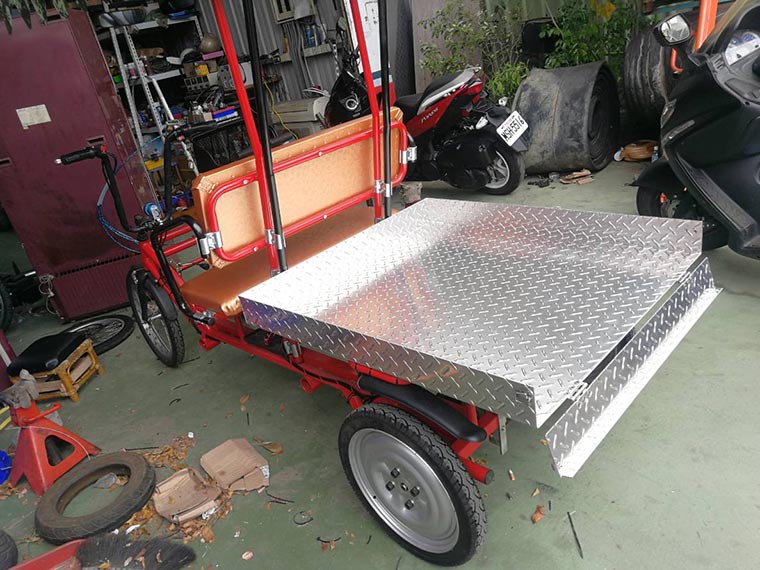

Electric mini truck - Aluminum truck pallet (cargo bed)

Truck Pallet (This cargo bed sample is made of aluminum 90*100 cm)(We plan it to be made of iron plate, and size 90x120 cm)(date: 2018 Oct.16)


Electric mini truck - Canopy Reinforcement

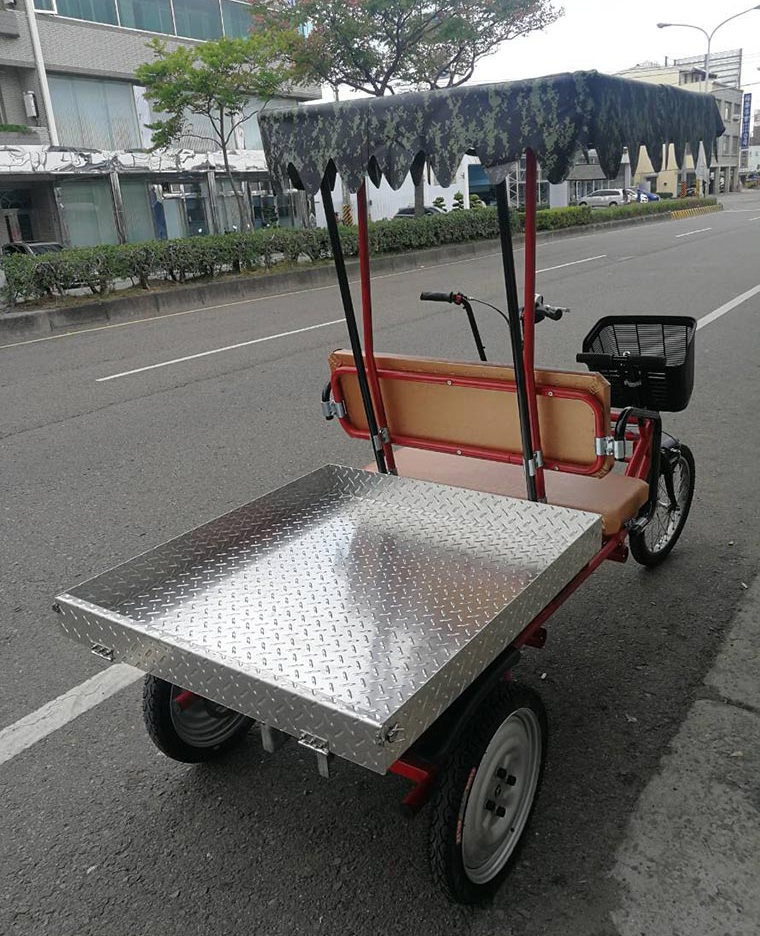

With truck pallet (cargo bed) and solid tires (rear wheels),Canopy Reinforcement.(date:2018 Oct.16)


Electric mini truck- Sizes for truck pallet (cargo bed)

Sizes for truck pallet (cargo bed):
(medium) 90*120 cm
(large) 120*150 cm

This sample 90*100 cm(aluminim plate),just for demostration.(date:2018 Oct.16)

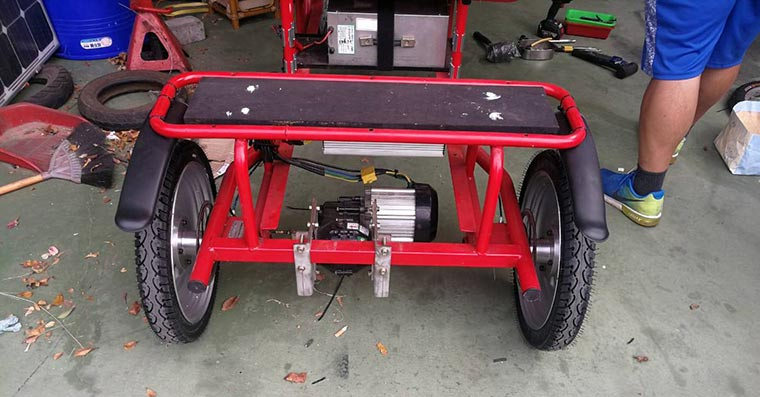

Electric mini truck - DC Motor

Brushless DC Motor
24Volt system, 800 Watt DC motor
48Volt system, 1200 Watt DC motor


Electric mini truck - Special designed rigid forks

Special designed rigid forks, the mini truck forks for matching solid tires and wheel frame.(date:2018 Oct.25)


Electric mini truck - front disk brake

Front disk brake.(date:2018 Oct.25)

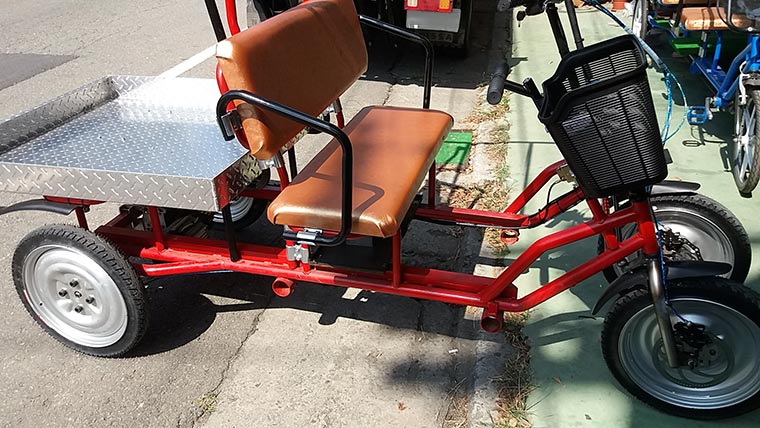

Electric mini truck - front wheels,rear wheels utilize solid tires

front wheels,rear wheels utilize solid tires, looks great, isn't it! (date:2018 Oct.25)

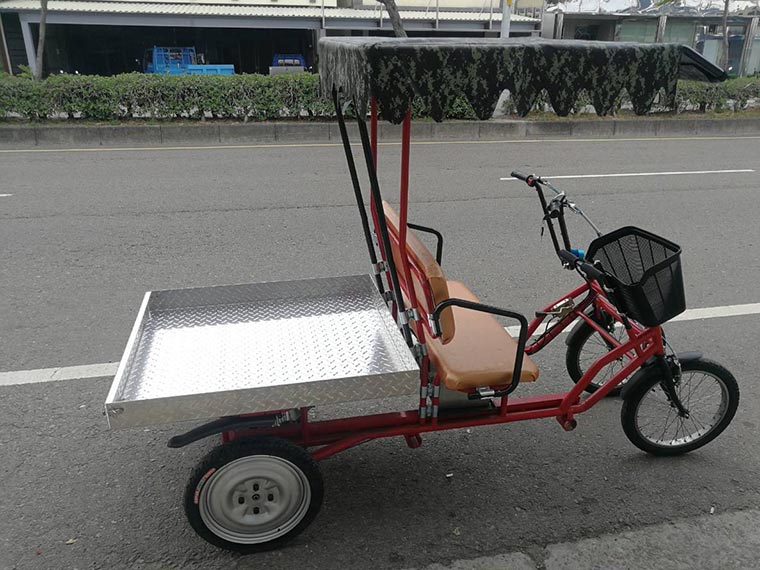

Electric mini truck - front view

front view of a electric truck(date:2018 Oct.26)

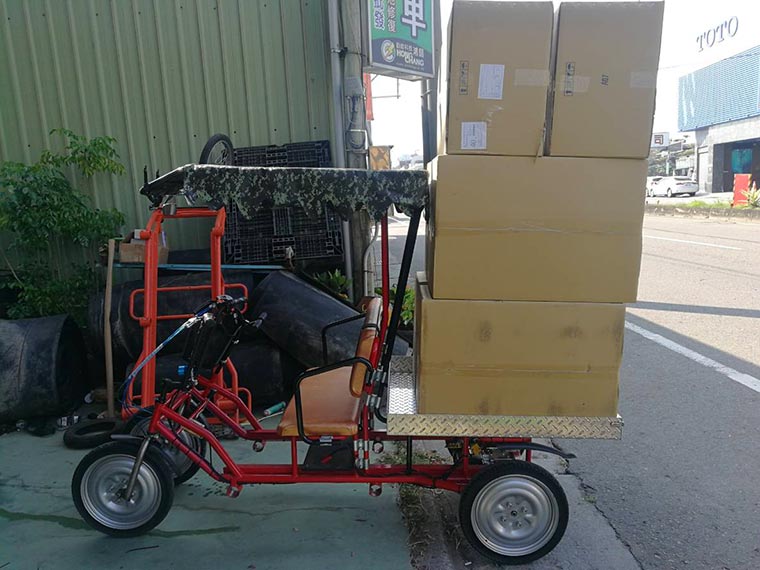

Electric mini truck - cargo load

Electric mini truck - Cargo load (date:2018 Oct. 26)


Our target:
1. Eco friendly and protect envrironment eductation.
2. Pollution free and zero emission, no harm to human and animals.
3. Save energy and save money.
4. Easy maintance: Most parts are come from bike parts, the bike shop
   can do repairs if necessary.
5. Use electric truck to replace gasoline/diesel truck.
